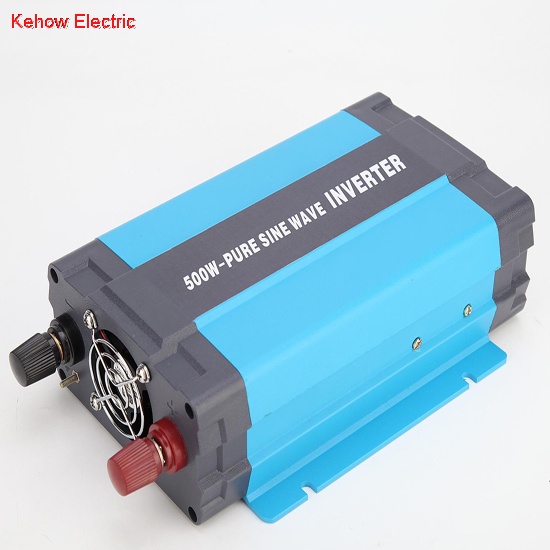

500W pure sine wave power inverter

Product name : 500W pure sine wave power inverter

Item : KH-500WNS

Details :

500W pure sine wave power inverter

■Adopt advanced CPU intelligent control

■Complete protection

■USB interface with 5V2A

■Customizable frequency switch

■Customizable DC voltage range not commonly used

Model		KH-500NS
Input	DC voltage	12V	24V	48V	96V	110V
	Voltage range	10-15.5VDC	20-30VDC	40-60VDC	80-120VDC	90-135VDC
	No load current draw	0.58A	0.35A	0.18A	0.1	0.1
	Efficiency	> 90%
	DC connection	Cables With Clips or Car Adaptor
Output	AC voltage	100/110/120VAC or 220/230/240 VAC
	Continuous power	500W
	Surge power	1000W
	Waveform	Pure sine wave
	Frequency	50Hz or 60Hz
	AC regulation	3%
Protection	Low voltage alarm	10.5DC±0.5V	21DC±0.5V	42VDC±1V	84DC±2V	96VDC±2V
	Low voltage shut down	10DC±0.5V	20DC±0.5V	40VDC±1V	80DC±2V	90VDC±2V
	Short circuit	Shut off output automatically
	Over load	Shut off output
	Over voltage shut down	15.5±1V	30±1V	60±2V	120±3V	135±3V
	Over thermal	Shut off output automatically
Environment	Working temperature	-10℃ and +50℃
	Working humidity	20%～90%RH
	Storage temperature	-30℃ ～ +70℃
Package	Machine size(LWH)mm	230142.265
	Net weight KG	1.01
	Gross weight KG	1.28
	Packing size mm	280170110
