500W Pure Sine Wave Power Inverter P Section

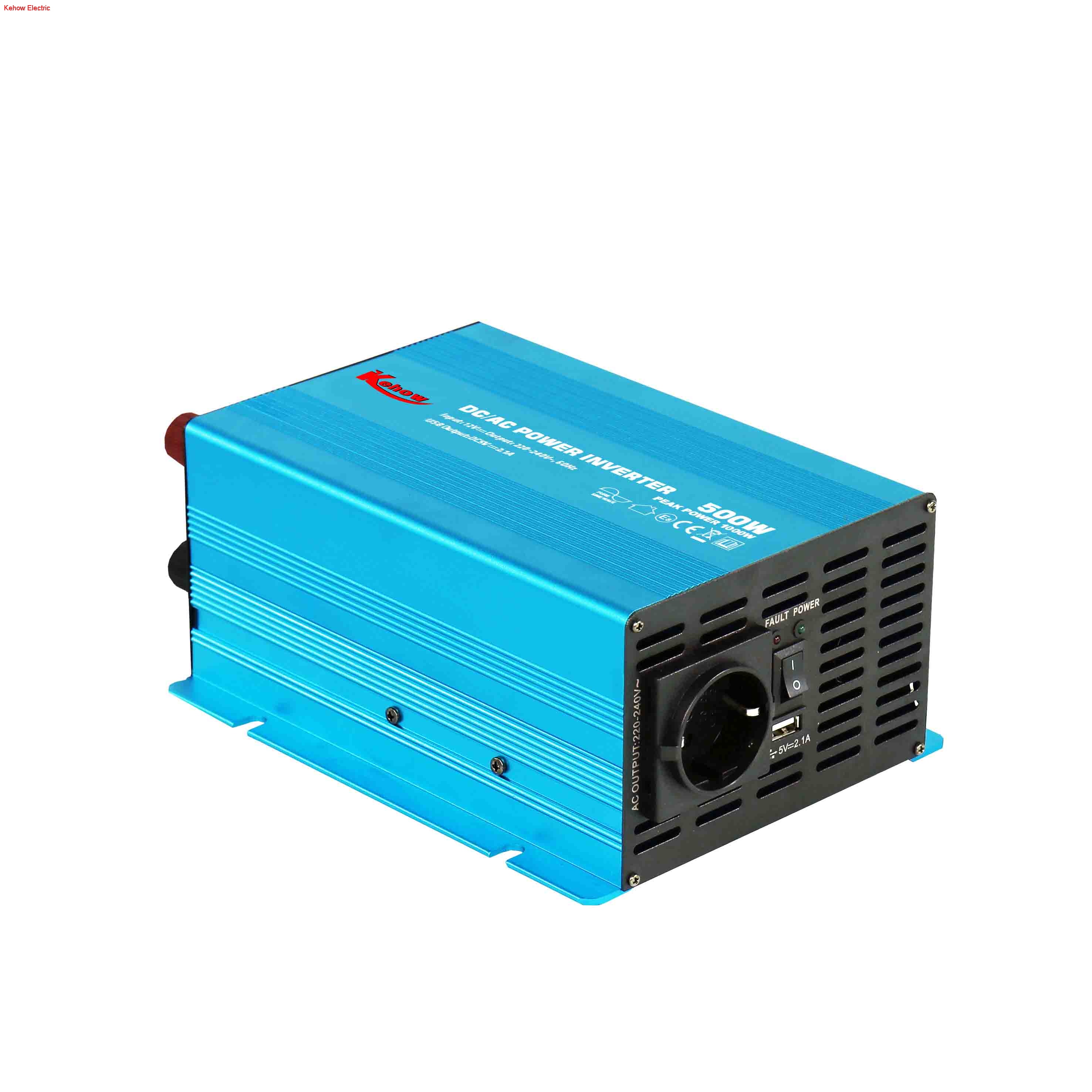

Product name : 500W Pure Sine Wave Power Inverter P Section

Item : KH-P-500W

Details :

500W real power pure sine wave power inverter with USB

What is power inverter?
A power inverter, or inverter, is an electronic device or circuitry that changes direct current (DC) to alternating current (AC).
The input voltage, output voltage and frequency, and overall power handling depend on the design of the specific device or circuitry. The inverter does not produce any power; the power is provided by the DC source.

Features:
1. Pure sine wave output.
2. Rated power range from 300W to 4000W.
3. 100% real power.
4. Fully electric protection: Low voltage alarm & Shutdown, over voltage, earth fault,short circuit,overload,soft start, over temperature, polarity reverse.
5. Customize DC input voltage range.
6. Can match remote controller to control power-on/off, cable length for 5meters.
7. Supply OEM brand service
8. Pure sine wave output, over 90% transfer efficiency.
9. USB at 5V 2.1A.

Specification details:

MODEL		PQ-500P
Output	AC Voltage	100-120V/220-240V AC
	Rated Power	500W
	Surge Power	1000W
	Waveform	Pure Sine Wave
	USB port	5V 2.1A	5V 2.1A	5V 2.1A	5V 2.1A
Input	DC Voltage	12VDC	24VDC	12VDC	24VDC
	Voltage Range	10.5~15VDC	21~30VDC	10.5~15VDC	21~30VDC
	Efficiency	>90%
	Remote Control	Function(optional)
Protection	BAT.Low Alarm	10.5±0.5VDC	21±1.0VDC	10.5±0.5VDC	21±1.0VDC
	BAT.LOW Shutdown	10±0.5VDC	20±1.0VDC	10±0.5VDC	20±1.0VDC
	Over Load	Shut down output voltage, restart to recover
	Over Voltage	15.5±0.5VDC	31±1.0VDC	15.5±0.5VDC	31±1.0VDC
	Over Temperature	Shut down output voltage, recover automatically after temperature goes down
	Output Short	Shut down output voltage, restart to recover
	DC Input Reverse Polarity	By fuse
	Earth Fault	Shut off o/p when the load has electrical leakage
	Soft Start	Yes,3~5 Seconds
Remote control(Optional)	Remot controller with 5m cable
Dimension	2516.89.6cm(LWH)
N.W(KG)	0.9kG
G.W(KG)	1.1kG
Warranty	2years
