120w single output switching power supply

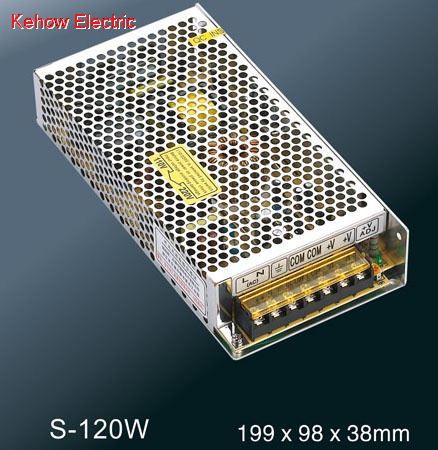

Product name : 120w single output switching power supply

Item : S-120

Details :

120w single output switching power supply

S-120 single output switching power supply

Features：

·AC input voltage range selected by switch

·Small volume，low weight，high efficiency

·Protections：short circuit/over load

·cooling by free air convection

·LED indicator for power on

·100% full load burn-in test

·2 Year warranty

Specification details:

Model		S-120-12	S-120-15	S-120-24	S-120-27	S-120-36	S-120-48
output	DC voltage	12V	15V	24V	27V	36V	48V
	Voltage tolerance	±1%	±1%	±1%	±1%	±1%	±1%
	Rated current	10A	8A	5A	4.5A	3.4A	2.5A
	Current range	0~10A	0~8A	0~5A	0~4.5A	0~3.4A	0~2.5A
	Rated power	120W	120W	120W	121.5W	122.4W	120W
	Ripple&noise	100mvp-p	100mvp-p	150mvp-p	150mvp-p	150mvp-p	150mvp-p
	DCvoltage ADJ.range	±10%	±10%	±10%	±10%	±10%	±10%
input	Voltage range	90~132VAC/180~264VAC(selected by switch)，255~373VDC
	frequency	47~63HZ
	AC current	2.8A/115VAC，1.4A/230VAC
	efficiency	78%	80%	82%	82%	83%	83%
	Inrush current	Cold start current 18A/115VAC，36A/230VAC
	Leakage current	< 3.5mA/240VAC
protection	overload	Rated output power115%~150% start over load protection
	overload	protection type：cutoff output，recovery after restart power
	-----	-----
	-----	-----
	-----	-----
	-----	-----
environment	Working temp,humidity	-10℃~+60℃，20%~90%RH
	Storagetemp,humidity	-20℃~+85℃，10%~95%RH non-condensing
	Withstand vibration	10~500HZ，2G 10min/1cycle，period for 60 minutes，each axes
safety	Withstand voltage	I/P-O/P：1.5KVAC I/P-FG：1.5KVAC O/P-FG：0.5KVAC
safety	Isolated resistance	I/P-O/P,I/P-FG,O/P-FG：100M ohms/500VDC
Fitstandard	Safety standard	Fit UL1012
Fitstandard	EMC standard	comply to EN55022，CLASSA
others	Dimension	1999838mm (LWH)
others	Weight/packing	0.6kg/30pcs/19kg/0.034 m³/1.2CUFT
note	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
